C-Series Photonics Probe Station

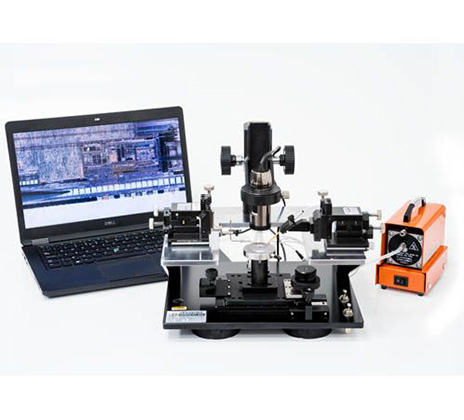

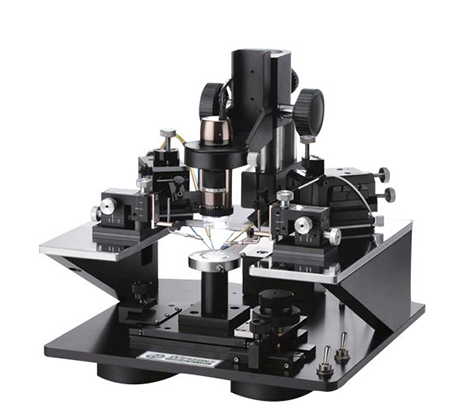

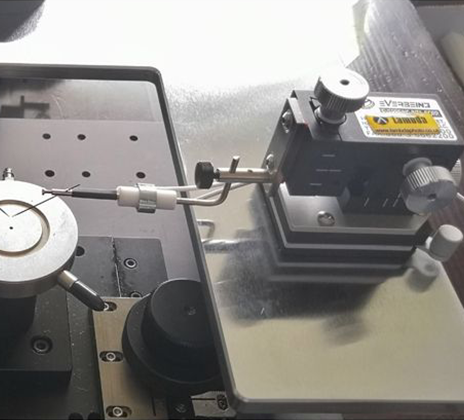

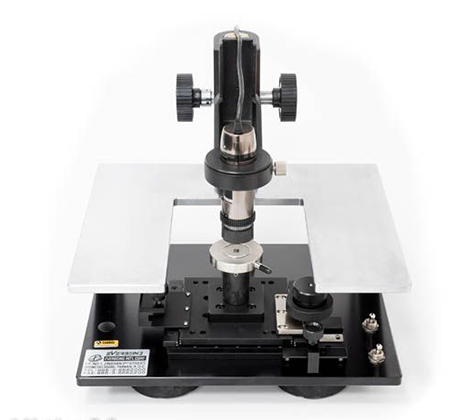

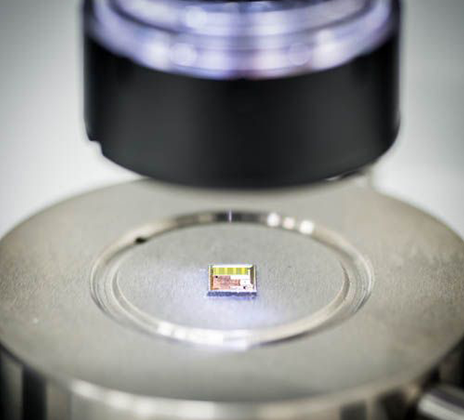

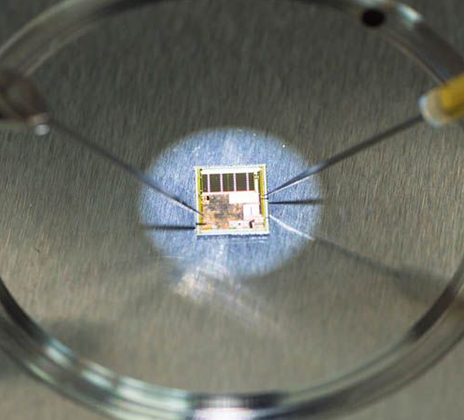

C series Photonics probe station is an extension of the C-series station and integrates micropositioners specific for fiber alignment. Control your fiber in both roll and pitch axes to carefully align your fiber to your sample. With the EB-005 200 TPI micropositioner, you can adjust with 0.3 µm resolution. A separate bracket is available for edge emitting setups. They are many models in this series, starting at 2 inch chuck to 8 inch C2, C4, C6 and C8. Fitted with a 10 micron precision X-Y chuck stage for alignment, hard chrome pated platen, vacuum chuck and anti-vibration mounts as standard, makes this compete with probe stations that cost many times the price. The 4 inch and above features chuck up/down. Available with a trinocular monozoom microscope.

Features:

n 4”, 6” & 8”  chuck sizes                                         n Linear X-Y stage, 2”-2”, 3”-3”, 4”-4”

n Precision Microscope X-Y stage ±25mm              n Flexible positioning of fibre 0 to 90°

n Fibre adjustment X-Y-Z, Theta and Yaw               n Hard chrome platted platen

n Linear backlash free coaxial X-Y stage                n IV/CV measurement applications

n RF probing (East/West configuration)                  n Suitable for research & clean room

n Anti-vibration foot mounts                                     n More stable with lower gravity centre

n One hand grips both X-Y knobs                           n One stage for fine and quick positioning


Accessories:

n RF probe/cables                         n Low current/capacitance probe                           n High voltage probe

n Hot chuck                                    n Vibration free table                                              n Shielding box/dark enclosure

Specifications:

n Chuck Theta >0.01° fine adjustment                               n Chuck up/down 4mm

n Steel chuck with individual vacuum switches                  n Linear backlash free X-Y travel

n Fine position at ~10 micron resolution                             n Quick motion ~25mm drive per revolution


Dimensions:

n C-6 = 515mm W x 410mm D x 550mm H  with microscope, 23kg with microscope

n C-4 = 480mm W x 410mm D x 550mm H  with microscope, 23kg with microscope



Station Type

Linear X-Y Chuck Stage

Chuck Up/Down

Chuck Fine Theta

Chuck Size Inch (mm)

Microscope X-Y Travel

U-Shaped RF Chuck

Probe Card Holder

Temp Range

C-Series

P

P

Optional

4-8 (100-200)

Optional

Optional

O

RT-700°C

C-2-RF

P

Optional

O

2 (50)

O

P

O

RT-200°C

EB-Series

P

P

Optional

4-12 (100-300)

P

Optional

Rectangle

RT-700°C

BD-Series

P

Platen up/down

Optional

4-12 (100-300)

P

Optional

Round

RT-700°C

EB-mmWave

P

P

Optional

2-12 (50-300)

P

Optional

O

RT-600°C

Photonic

P

P

P

4-12 (100-300)

P

P

O

RT-700°C

Environmental

P
Platen up/downOptional4-8 (100-200)POptionalRound-60°C-200°C

Cryogenic

O
OO1-2 (30-50)PRF ProbesO

4K-480K

RT-750°C
