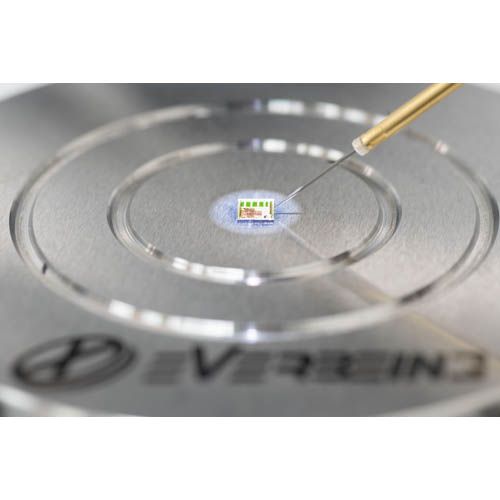

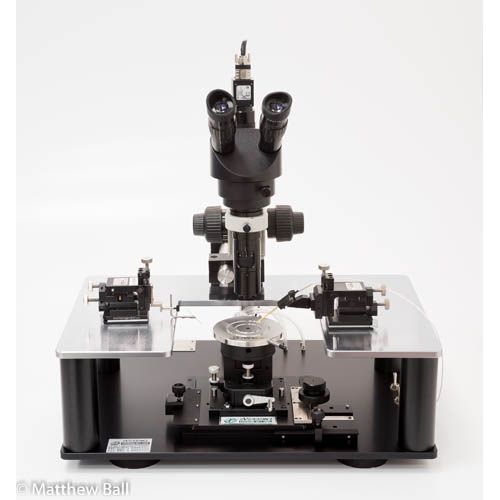

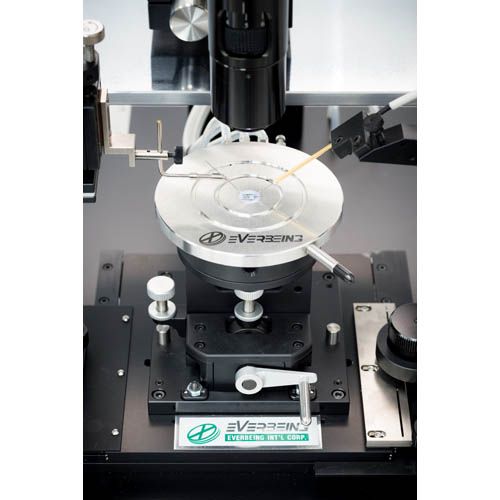

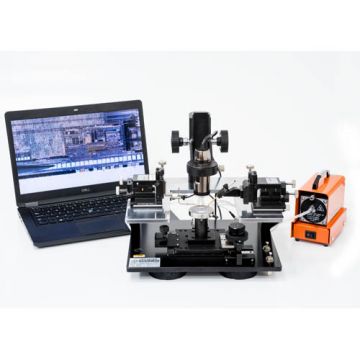

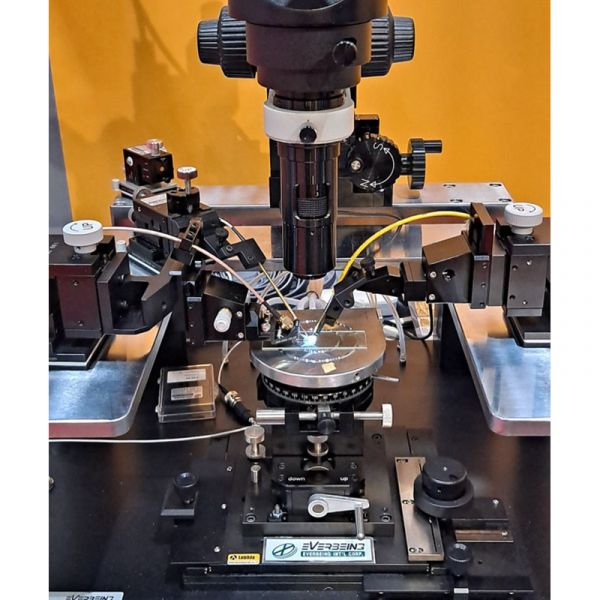

Suitable for all types of research or industrial probing applications from DC, RF and mmWave. EverBeing can custom a system to meet your characterisation needs and budget. The C-Series is a cost effecting range of probe stations with the high precision and durability you would expect from a performance probe station but at a lower cost.

Features:

n 4”, 6” & 8” chuck sizes n Linear X-Y stage, 2”-2”, 3”-3”, 4”-4”

n Linear backlash free coaxial X-Y stage n Compact size, lightweight

n Excellent value n IV/CV measurement applications

n RF probing (East/West configuration) n Suitable for research & clean room

n Anti-vibration foot mounts n More stable with lower gravity centre

n One hand grips both X-Y knobs n One stage for fine and quick positioning

Accessories:

n Microscope stage X-Y stage 2”-2” n Monozoom microscope 80-1650X magnification

n RF probe/cables n Fibre optic probing

n Digital camera n Low current/capacitance probe

n High voltage probe n Hot chuck

n Vibration free table n Shielding box/dark enclosure

Model	Weight	Width	Depth	Height (platen/microscope)
C-2	22Kg	320	320	180/600
C-2-PLUS	26Kg	360	330	180/600
C-2-RF	26Kg	360	330	180/600
C-4	40Kg	580	460	180/600
C-6	42Kg	580	460	180/600
C-8	48Kg	620	460	190/610

Micro positioner range:

Model	Resolution / TPI	Dimensions W x D x H	Weight	Bearing Type	DC	RF	mmWave	Fibre Optic	Permanent Magnet	Magnet On-Off	Vacuum
EB-700	2 µm / 40	38 x 62 x 45	200g	Dove Tail	Y	N	N	N	Optional	Standard	Optional
EB-050-80	0.8 µm / 80	52 x 96 x 76	550g	Linear	Y	Y	N	N	Optional	Standard	Optional
EB-050-100	0.7 µm / 100	52 x 96 x 76	550g	Linear	Y	Y	N	Y	Optional	Standard	Optional
EB-005-100	0.7 µm / 100	90 x 130 x 90	1000g	Linear	Y	Y	Y	N	Optional	Standard	Optional
EB-005-200	0.35 µm / 200	90 x 130 x 90	1000g	Linear	Y	Y	Y	N	Optional	Standard	Optional
EB-KRF	1.0 µm	400 x 270 x 340	6500	Linear	Y	N	Y	Y	Screw to Base / Optical Table
EB-AN125	0.8 µm	110 x 160 x 90	1400	Linear	Y	N	Y	Y	Screw to Probe Station Platen
EB-KRF-C	1.0 µm	150 x 150 x 90	5500	Linear	Y	N	Y	Y	Screw to Probe Station Platen

Specifications:

n Chuck up/down 4mm n Steel chuck with individual vacuum switches

n Linear backlash free X-Y travel n Fine position at ~10 micron resolution

n Quick motion ~25mm drive per revolution n Chuck theta at 15° backlash free

n Hard chrome plated platen

Dimensions:

n C-6 = 515mm W x 410mm D x 550mm H with microscope, 23kg with microscope

n C-4 = 480mm W x 410mm D x 550mm H with microscope, 23kg with microscope

Station Type	Linear X-Y Chuck Stage	Chuck Up/Down	Chuck Fine Theta	Chuck Size Inch (mm)	Microscope X-Y Travel	U-Shaped RF Chuck	Probe Card Holder	Temp Range
C-Series	P	P	Optional	4-8 (100-200)	Optional	Optional	O	RT-700°C
C-2-RF	P	Optional	O	2 (50)	O	P	O	RT-200°C
EB-Series	P	P	Optional	4-12 (100-300)	P	Optional	Rectangle	RT-700°C
BD-Series	P	Platen up/down	Optional	4-12 (100-300)	P	Optional	Round	RT-700°C
EB-mmWave	P	P	Optional	2-12 (50-300)	P	Optional	O	RT-600°C
Photonic	P	P	P	4-12 (100-300)	P	P	O	RT-700°C
Environmental	P	Platen up/down	Optional	4-8 (100-200)	P	Optional	Round	-60°C-200°C
Cryogenic	O	O	O	1-2 (30-50)	P	RF Probes	O	4K-480K RT-750°C
