Connectors/Adapters/Cables Everbeing understands the integration issues you may have between measurement instruments and probing devices. To utilize older machine while future-proofing your new probers, adapters are required to mate correctly. Alternatively, you may use instruments with different interface and require interchanging connections.

Connection Types:

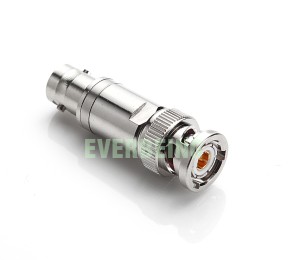

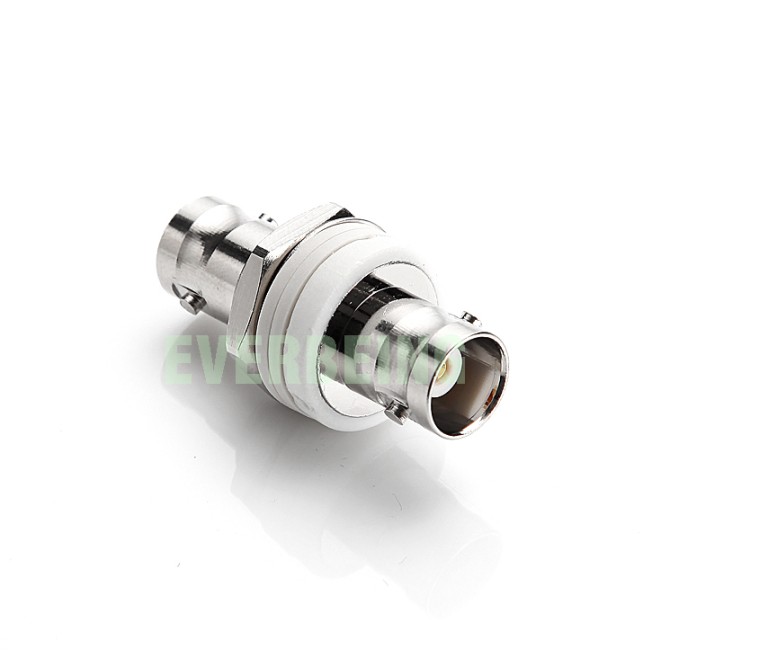

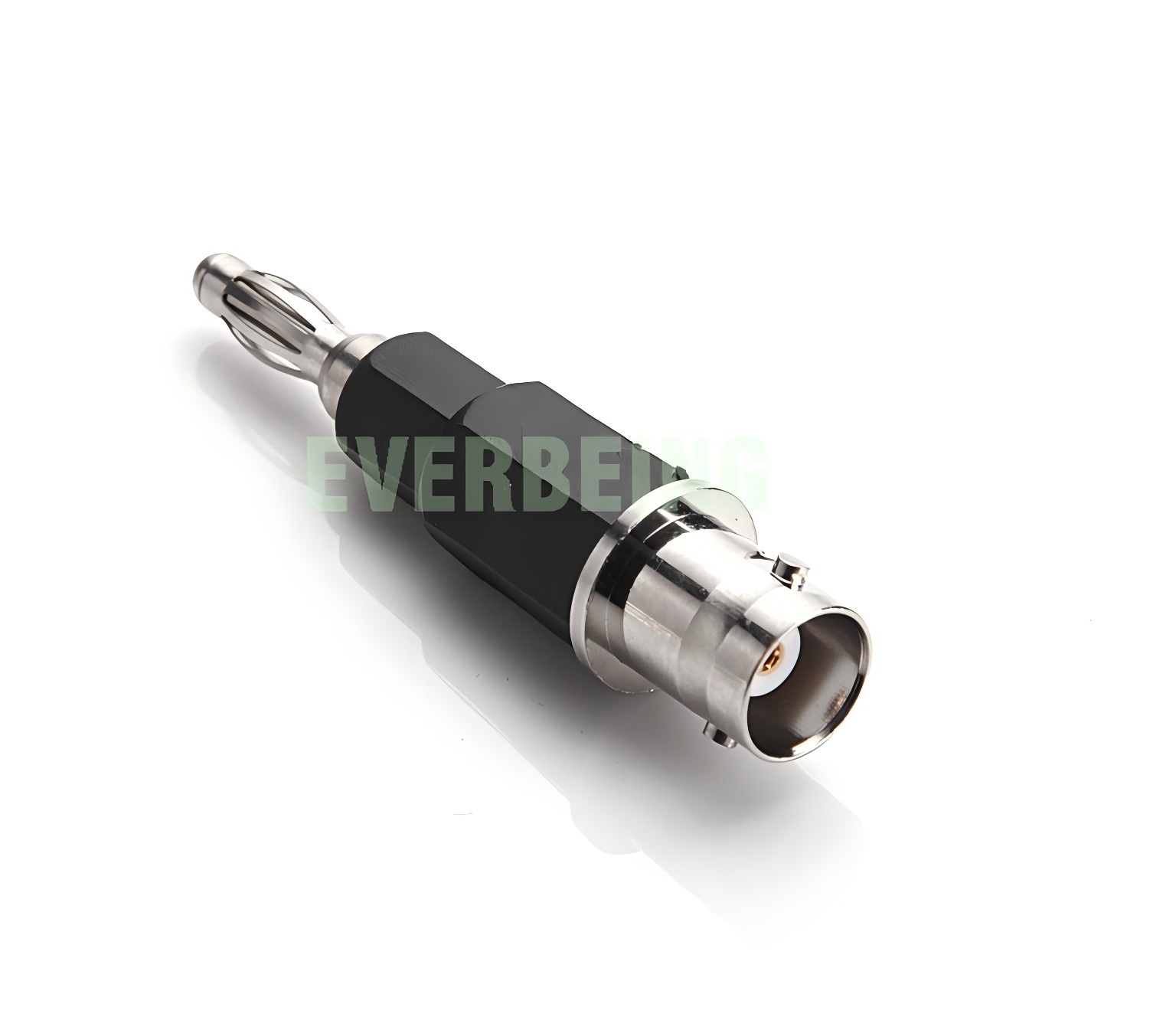

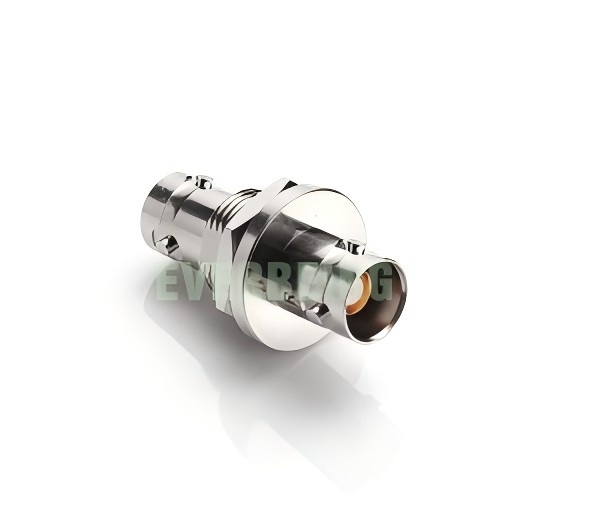

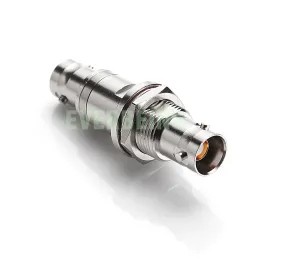

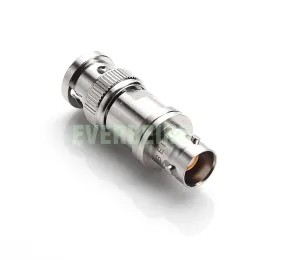

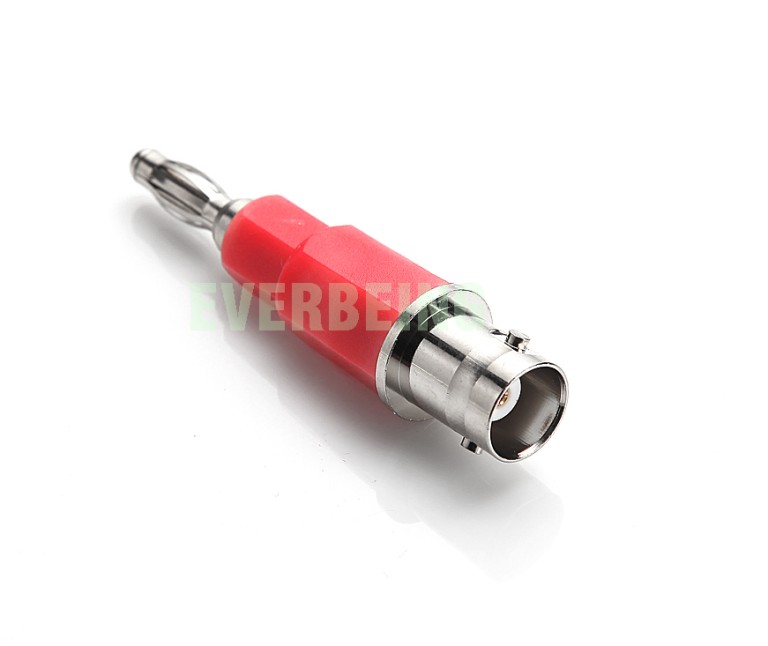

Common interfaces from test instruments are Banana, BNC and Triaxial. Depending on your requirement, adapters are necessary to ensure proper connections. Other coaxial connectors such as SMA or SSMC are also common.

Choose between different connection interface adapters or cables to enhance and diversify your testing environment.


Electrical Specification
FrequencyDC-18GHz
Impedance50Ω
VSWR≤1.15:1
Mechanical Specification
Connectors

N-Type Male to SMA Female

HousingStainless Steel SU303 (Polished/Passivated)
Centre ContactBeryllium Copper, Gold Plated (MIL-G-45204)
InsulatorsPEI
Temperature Range-55°C to +165°C
Durability500 Cycles
InterfaceN-Type/SMA Per MIL-STD-348A
RoHS Compliant

The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:

Substance                                                                    Concentration
Lead 0.1%
Mercury0.1%
PBB (Polybrominated Biphenyls) 0.1%
PBDE (Polybrominated Diphenyl 0.1%
Ethers Hexavalent Chromium0.01%

 The supplier of the item listed has informed Lambda Photometrics Ltd. that the product is “RoHS Compliant”.
