EverBeing EB-050 Micropositioner 1.0µm Resolution

Stock Qty:10

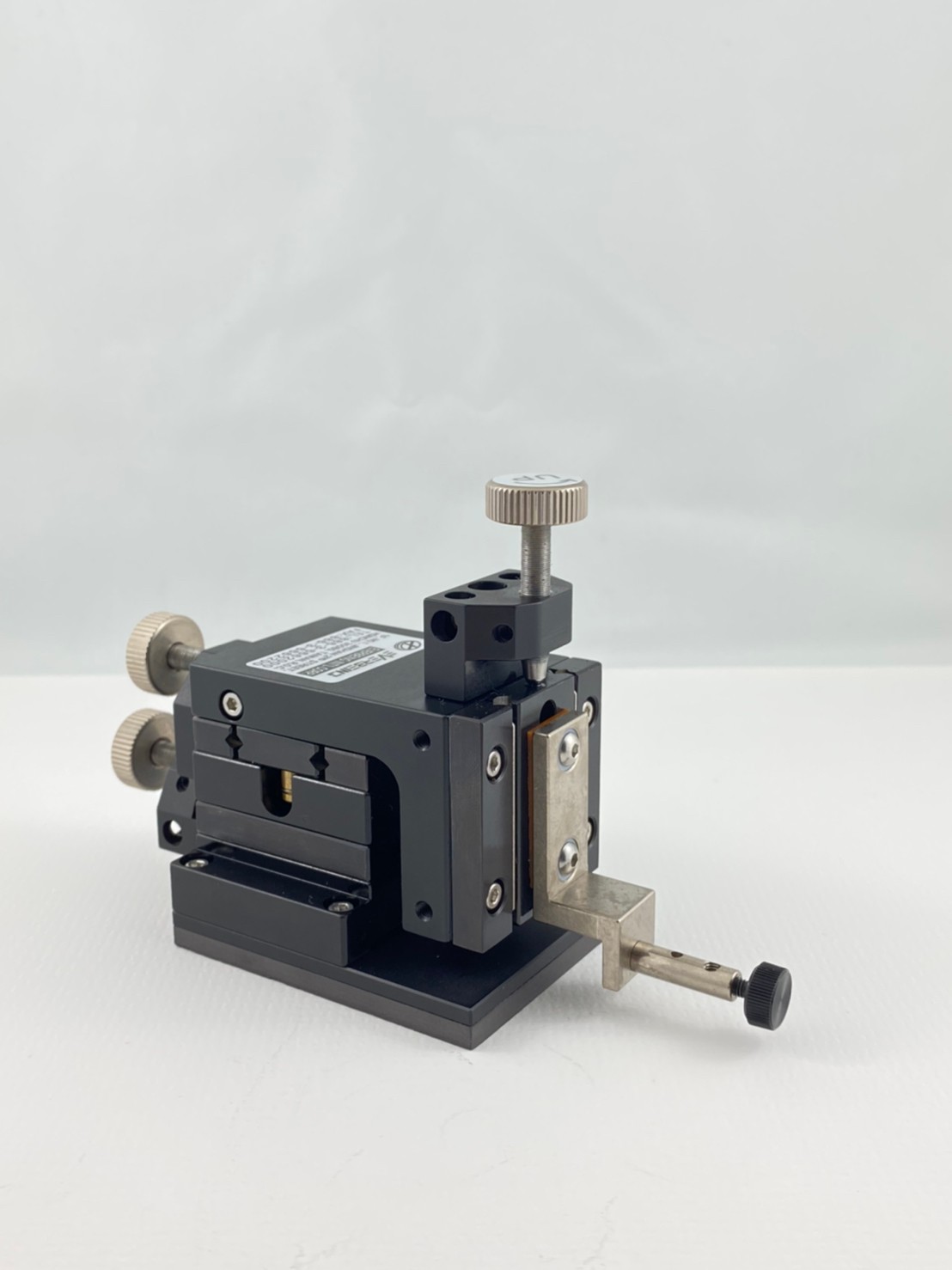

Our most popular Micropositioner offering true linear motion of 12mm in each axis X-Y-Z and 1.0µm resolution. Supplied in left hand version with Magnet On/Off Base for ease of placing and positioning on the platen. Suitable for use with standard bracket or with soft landing inclination using our coaxial and triaxial tubular tip holders. Accuracy: 1.0micron (1.0µm ) Base Type: Magnet on/off Precision linear bearings Travel X-Y-Z: 12MM * 12MM * 12MM Lead screw: 80 TPI (threads per inch) Right hand Version Dimensions: 52mm(W) x 96mm(D) x 76mm(H) Weight: 550g The EB-050 series is available in left and right hand versions with Permanent Magnet (M), Magnet on/off (E) or Vacuum bases (V) to suit all applications. Also available in 100TPI for 0.7µm resolution.

Description
Specifications
Downloads
Reviews

The EB-050 Series of Micropositioner’s from EverBeing offer 3-axis (X-Y-Z) movement, with 12mm of travel in each direction.

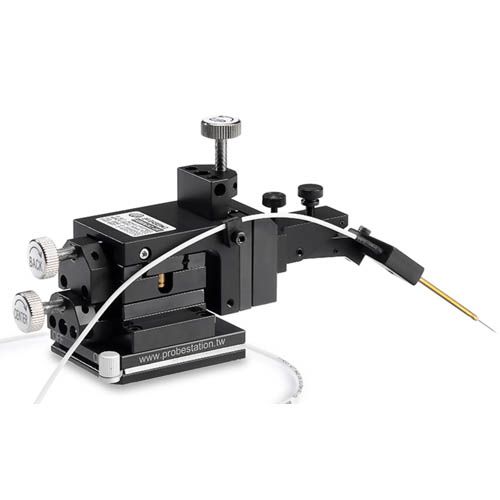

The ease of positioning, size and true linear motion makes the EB-050E our most popular micropositioner. Supplied with a magnetic base that can be switched on/off using a slider at the rear of the assembly. It is machined for demanding probing applications needing accuracy and repeatability with the ability to control 12mm of travel with 1.0µm movement in all three axes.

Suitable for DC, RF and fibre probe heads. For increased accuracy the unit is available with 100TPI to give less than 0.8µm.

Application:

DC Kelvin RF mmW

EB-050 ✓ ✓ ✓

EB-700 ✓ ✓

EB-005 ✓ ✓ ✓

EB-KRF ✓ ✓ ✓

EB-KRF-C ✓ ✓ ✓

EB-CG250 ✓ ✓

Resolution: 80 TPI to give less than 1.0µm

100 TPI to give less than 0.8µm

Screw Resolution: 317 µm

Travel Range: 12 mm x 12mm x 12mm

Dimensions: 52 mm x 96 mm x 76 mm

Weight: 550 g

Application: DC, Kelvin, RF

Mount Type: Magnet, Vacuum, Magnet ON/OFF

EB Micropositioners.pdf
