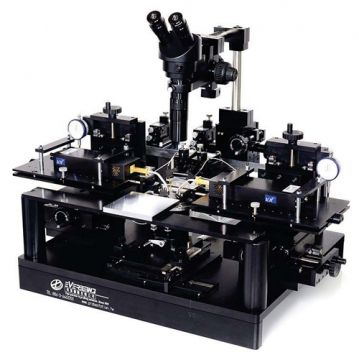

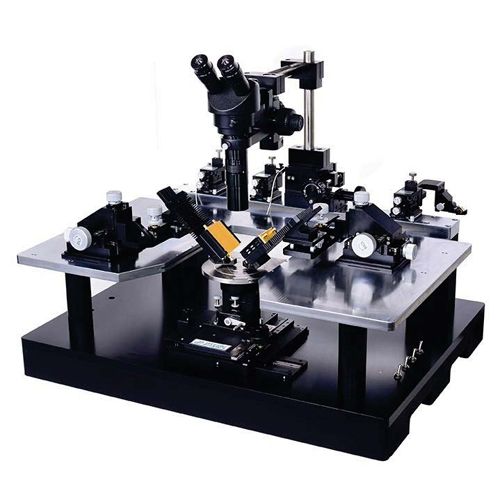

Features:

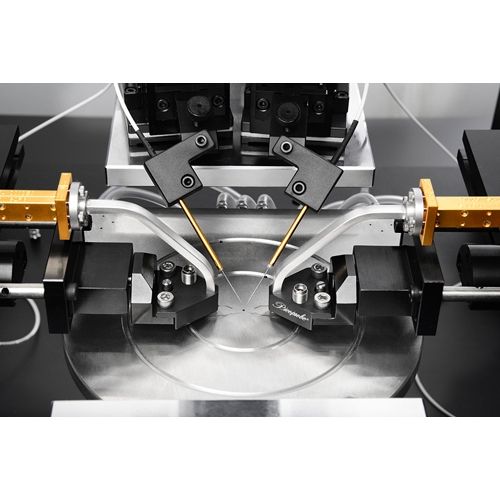

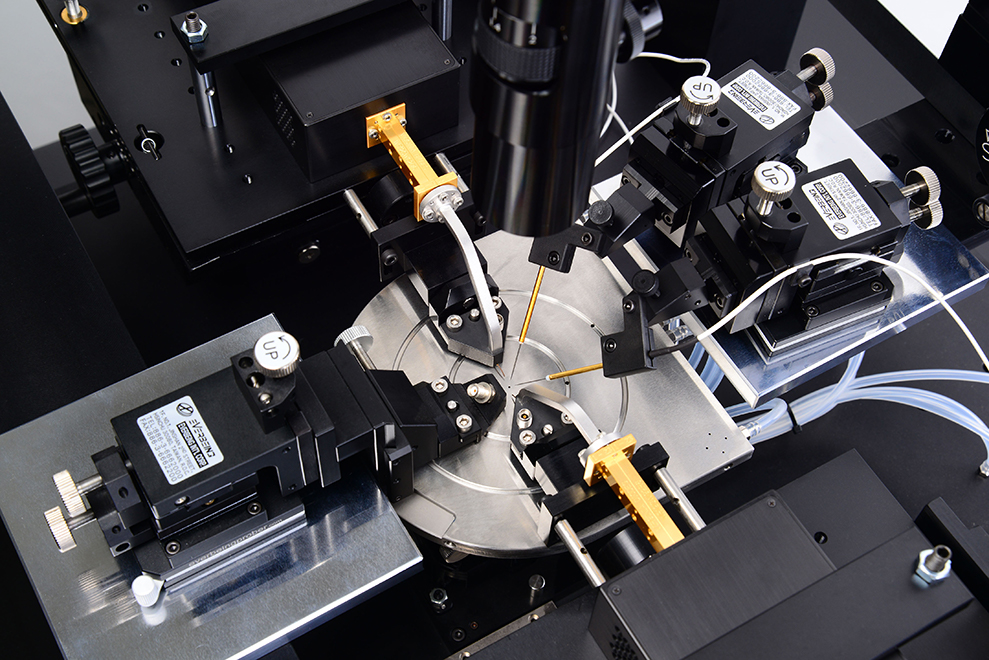

n Customised positioners specifically, 6A designed for Anritsu broadband mmWave modules, 6V designed for mmWave modules from VDI, OML, Keysight and Rohde & Schwarz

n Integrated heatsink and mount for mmWave modules

n Precise integration allows direct link to probes

n 20X-4000X magnification

n Backlash free movement

n 4.5 inch probe card holder compatible

n Double sided mmWave probing option

n Coaxial style high precision stage revolving objectives

Accessories:

n RF probe/cables n Active probes n Low current/capacitance probe n High voltage probe

n Laser cutter n 4.5inch probe card holder n Packaged device holder n PCB holder

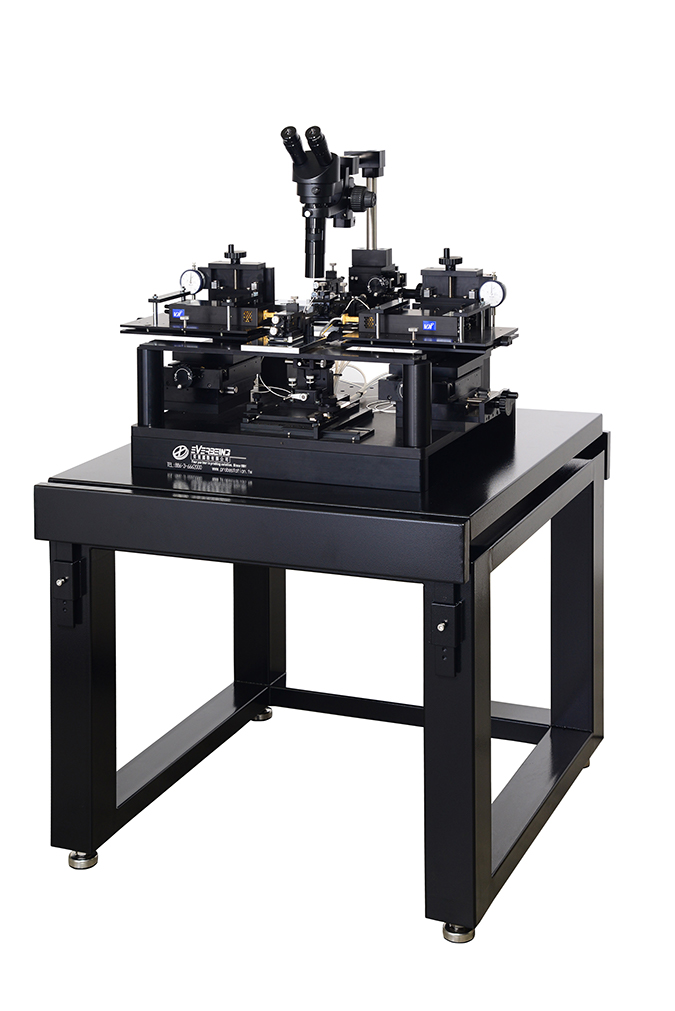

n Thermal chuck n Vibration free table n Shielding/dark box n Instrument case with caster

n Microscope quick lift n Chuck vacuum pattern n Gold plated chuck

Applications:

High performance RF
Single broadband probing
Differential mm-Wave
Basic DC (IV/CV)

Specifications:

n 6” stainless steel vacuum chuck n Chuck stage 6”x6” travel

n Chuck theta 0-30° n Chuck up/down 4mm adjustable

n 12 DC or 4 RF & 4 DC micropositioner platen

Dimensions:

n 760mm W x 660mm D x 700mm H with microscope

n 80kg with microscope

Station Type	Linear X-Y Chuck Stage	Chuck Up/Down	Chuck Fine Theta	Chuck Size Inch (mm)	Microscope X-Y Travel	U-Shaped RF Chuck	Probe Card Holder	Temp Range
C-Series	P	P	Optional	4-8 (100-200)	Optional	Optional	O	RT-700°C
C-2-RF	P	Optional	O	2 (50)	O	P	O	RT-200°C
EB-Series	P	P	Optional	4-12 (100-300)	P	Optional	Rectangle	RT-700°C
BD-Series	P	Platen up/down	Optional	4-12 (100-300)	P	Optional	Round	RT-700°C
EB-mmWave	P	P	Optional	2-12 (50-300)	P	Optional	O	RT-600°C
Photonic	P	P	P	4-12 (100-300)	P	P	O	RT-700°C
Environmental	P	Platen up/down	Optional	4-8 (100-200)	P	Optional	Round	-60°C-200°C
Cryogenic	O	O	O	1-2 (30-50)	P	RF Probes	O	4K-480K RT-750°C

EB-6V.pdf

EB-6A.pdf
