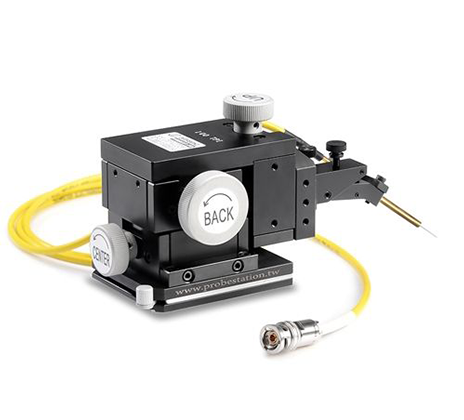

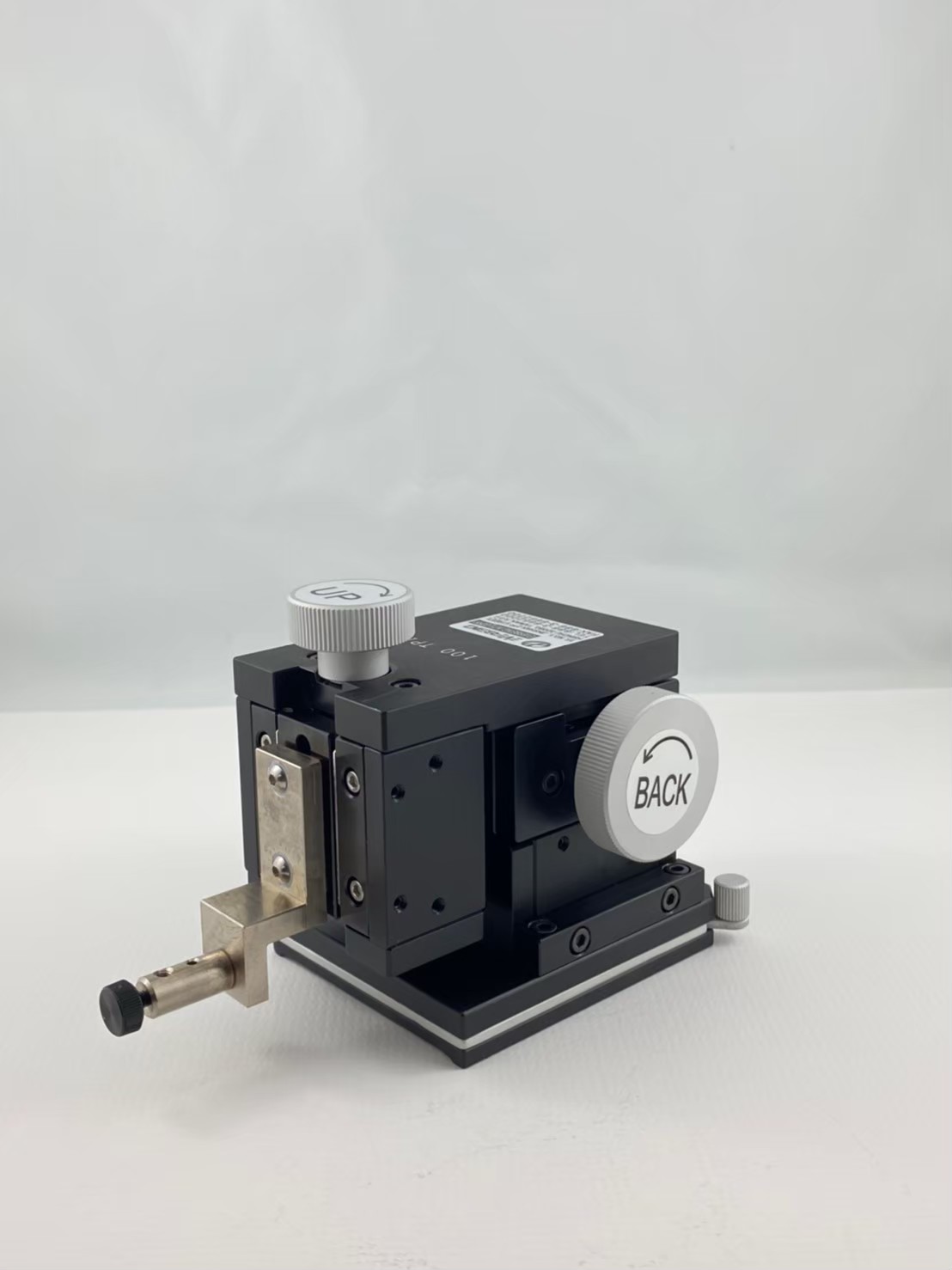

The EB-005E Micropositioner from EverBeing has 3 axis of movement, with a magnetic base that can be switch on/off using a slider at the rear of the assembly. It is machined for demanding probing applications with the ability to control down to 0.35 um movement in all axis. The EB-005E micropositioner is precision built for even greater stability, featuring linear motion in all three axis, and provides precise level of control for many different probing applications. Available in 100 TPI = 0.70micron (0.70um) or 200 TPI = 0.35micron (0.35um)

Features

• Precise Linear Motion
• Zero Backlash
• Magnetic Base with On/Off Switch
• I/O Pad Probing
• Circuit Probing
• RF Probing
• Space Saving,
• In-Line X-Y Knob
• Choice of Triaxial / Coaxial Tip Holders
• X-Y-Z 12mm x 12mm x 12mm
• Lead Screw 100 / 200 TPI Thread/Inch

• Resolution 0.70 / 0.35 Micron

•


Options within the EB-005 Series:

EB-005M-100, Micropositioner, 100TPI with magnetic base

EB-005M-200, Micropositioner, 200TPI with magnetic base

EB-005E-100, Micropositioner, 100TPI with magnet on/off base

EB-005E-200, Micropositioner, 200TPI with magnet on/off base

EB-005V-100, Micropositioner, 100TPI with vacuum base

EB-005V-200, Micropositioner, 200TPI with vacuum base

Application:

              DC                    Kelvin                     RF                       mmW

EB-050         ✓                         ✓                          ✓

EB-700         ✓                         ✓

EB-005         ✓                         ✓                          ✓

EB-KRF         ✓                                                     ✓                            ✓

EB-KRF-C     ✓                                                     ✓                            ✓

EB-CG250    ✓                                                      ✓
