EverBeing C-2 RF Probe Station

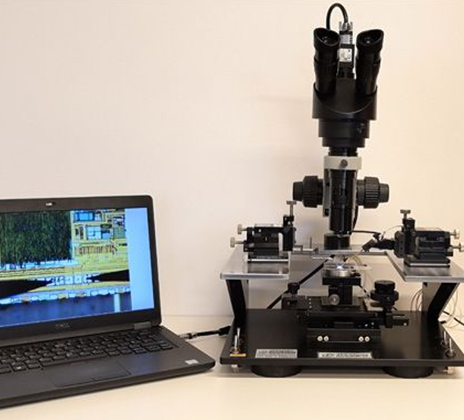

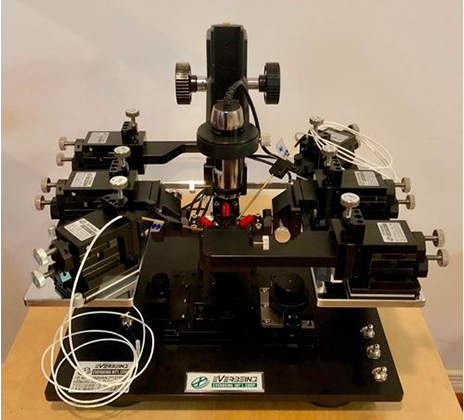

The EverBeing C-2-RF model is the worlds smallest probe station equipped with the same features as EverBeing full-size probe stations. It is ideal for DC and RF applications for samples of 2” or less up to 70GHz. Components such as the raised platen, coaxial X-Y stage and digital microscope mount are included with the system. It is the smallest and most affordable EverBeing probe station. Suitable for 4 port measurement North, South, East, West plus two DC bias probes.

Features:

n U-chuck holds DUT plus calibration  substrate                                  n Affordable price

n Ideal for wafers of less than 2”                                                           n IV/CV measurement applications

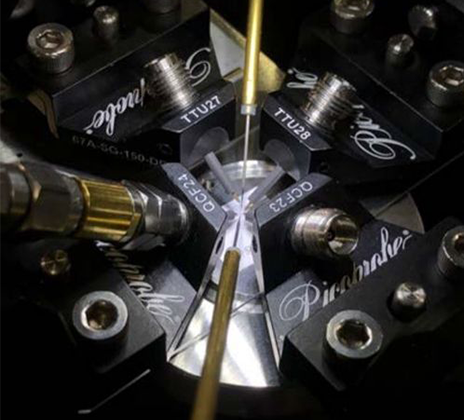

n RF probing (East/West/North/South  configuration)                           n Same coaxial stage as fitted on full size  probe stations

n Single knob design for fine and quick  positioning as well as X-Y single hand  operation

n Low gravity centre for stability                                                            n Fits into glove box



Accessories:

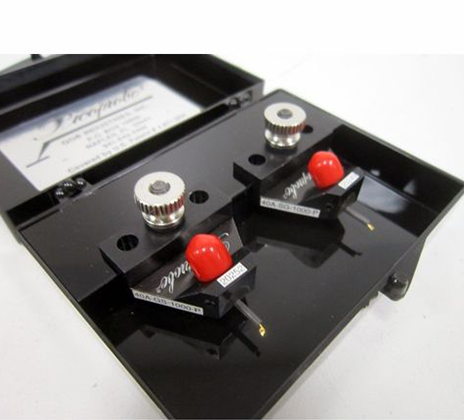

n Digital camera up to 300x magnification                                            n RF probe/cables

n Low current/capacitance probe                                                          n High voltage probe




Specifications:

n 2” steel D-shaped chuck with vacuum  switch                                  n Coaxial stage with 2”-2” linear backlash  free travel

n Fine position at ~10 micron resolution                                              n Quick motion at ~25mm drive  per revolution

n Chuck theta at 15° backlash free


Dimensions:

n 360mm W x 330mm D x 320mm H                                                   n 22kg with digital camera and 4 positioners



Station Type

Linear X-Y Chuck Stage

Chuck Up/Down

Chuck Fine Theta

Chuck Size Inch (mm)

Microscope X-Y Travel

U-Shaped RF Chuck

Probe Card Holder

Temp Range

C-Series

P

P

Optional

4-8 (100-200)

Optional

Optional

O

RT-700°C

C-2-RF

P

Optional

O

2 (50)

O

P

O

RT-200°C

EB-Series

P

P

Optional

4-12 (100-300)

P

Optional

Rectangle

RT-700°C

BD-Series

P

Platen up/down

Optional

4-12 (100-300)

P

Optional

Round

RT-700°C

EB-mmWave

P

P

Optional

2-12 (50-300)

P

Optional

O

RT-600°C

Photonic

P

P

P

4-12 (100-300)

P

P

O

RT-700°C

Environmental

P
Platen up/downOptional4-8 (100-200)POptionalRound-60°C-200°C

Cryogenic

O
OO1-2 (30-50)PRF ProbesO

4K-480K

RT-750°C



C-2RF-Updated-Compressed.pdf
